The complete wine analysis system that delivers laboratory-quality results right from your cellar in minutes.


CDR WineLab® is a reliable, complete and fast system of wine analyses. It enables you to carry out analyses for the control of the winemaking process both in the laboratory and in the wine cellar without the need for specialised personnel.

Wine Analyses
Here is the list of chemical analyses that can be carried out with CDR WineLab®:

  • Acetic acid (volatile acidity)

  • Total Acidity

  • Fermentable Sugars

  • L-Malic Acid

  • L-Lactic Acid

  • Alcohol by Volume

  • Free sulfur dioxide (SO₂)

  • Total Sulfur Dioxide (SO₂)

  • Yeast Assimilable Nitrogen (YAN)

  • Calcium

  • Galacturonic Acid

  • Citric Acid

  • Gluconic acid​

  • pH

  • Colour (tonality and intensity)

  • Acetaldehyde (Ethanal)

  • Catechins

  • Copper

  • Anthocyanins Extraction on Grapes

  • Total Anthocyanins

  • Total Polyphenols Index

  • Total Polyphenols (Folin Ciocalteu)

  • Polymerised Anthocyanins

  • HCl index

  • Tannins

  • Glycerol

Models

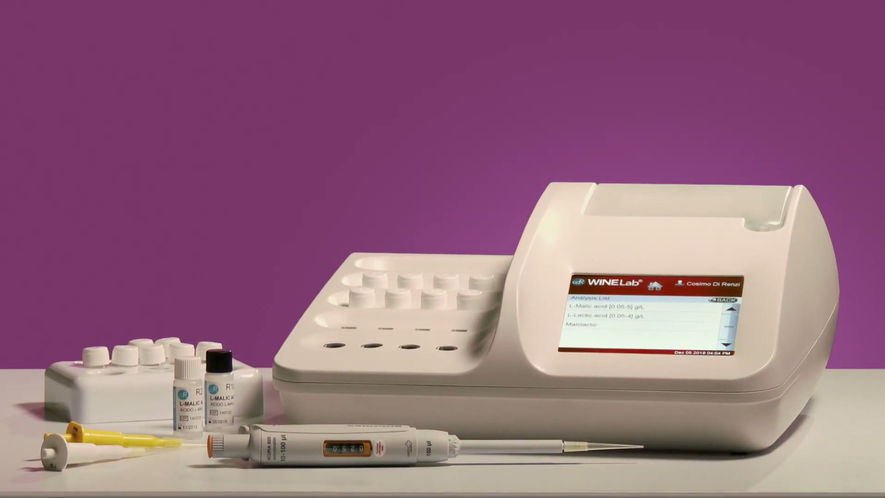

CDR WineLab®

  • Complete analysis panel

  • 16 samples simultaneously analysable

  • Multitasking mode

  • Pre-calibrated. No periodic calibration is necessary

  • Sufficient internal memory for storing thousands of analysis results in CVS and XML files compatible with all database formats (e.g., XLS, SQL).

  • Photometric module: 6 wavelengths in 4 reading cells

  • Incubation module: 37 °C thermostated block with 16 positions

  • Barcode and QR connection: Yes, via bluetooth

  • Display: 5.7” TFT colour LCD with touch screen

  • Connectivity:

- 1 USB port type B for transferring the performed analysis database, configuration and software update, PC connection.
- 1 USB port type A for technical service and computer connection.
- 1 Ethernet port (LAN) for connection to intranet.
- Bluetooth 4.0

  • Printer: 80 mm wide printer with integrated graphics

  • Weight and size: 32 x 29.5 x 13 cm (W x D x H) 2.80 kg

CDR WineLab® Jr

  • Customisable analysis panel

  • 3 samples simultaneously analysable

  • Pre-calibrated. No periodic calibration is necessary

  • Sufficient internal memory for storing thousands of analysis results in CVS and XML files compatible with all database formats (e.g., XLS, SQL).

  • Photometric module: up to 7 wavelengths in 4 reading cells

  • Incubation module: 37 °C thermostated block with 3 positions

  • Barcode and QR connection: No

  • Display: 4.3” TFT colour LCD with touch screen

  • Connectivity:

- 1 USB port type B for transferring the performed analysis database, configuration and software update, PC connection.​

  • Weight and size: 15 x 22 x 8.3 cm (W x D x H) 0.80 Kg

CDR WineLab

CDR WineLab
CDR WineLab®
03:30
1
00:16
2
00:23

Contact us today for pricing and availability!
